Laboratory Facilities

1. Vector Network Analyzers

A. Rohde & Schwarz Network Analyzer (up to 110 GHz)

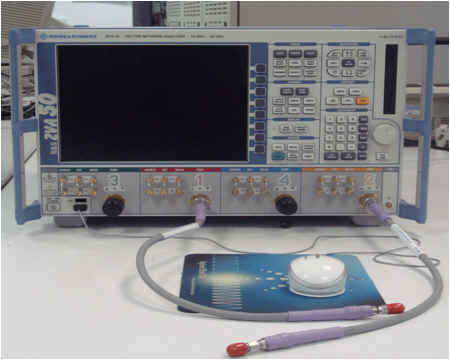

(1). ZVA50 (10 MHz - 50 GHz, 4-port)

(2). ZVA-Z75 and ZVA-Z110, (50 GHz - 110 GHz, 2-port)

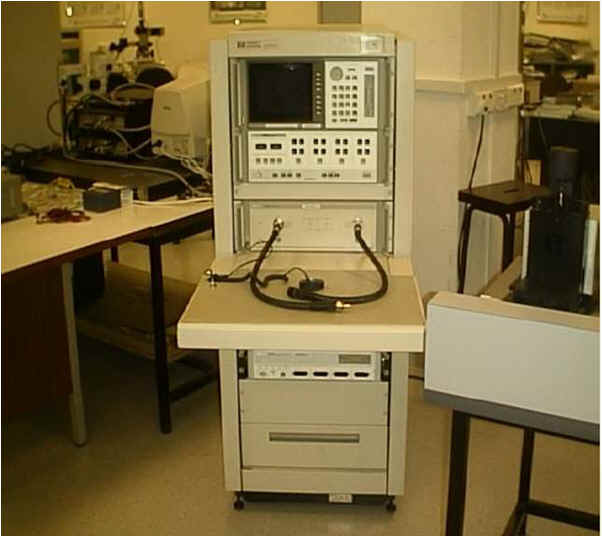

B. HP8510C (45 MHz - 50 GHz)

2. On-Wafer Measurement System

A. On-wafer Maury PIV3200 & RF system + Maury Vector Receiver Load-Pull System

(1) Maury Pulsed IV 3200 (min. pulse width 200 ns) & RF System (0.8 GHz to 18 GHz)

(2) Maury Vector Receiver Load-Pull System (MT982BL01 tuners, 0.8 - 18 GHz)

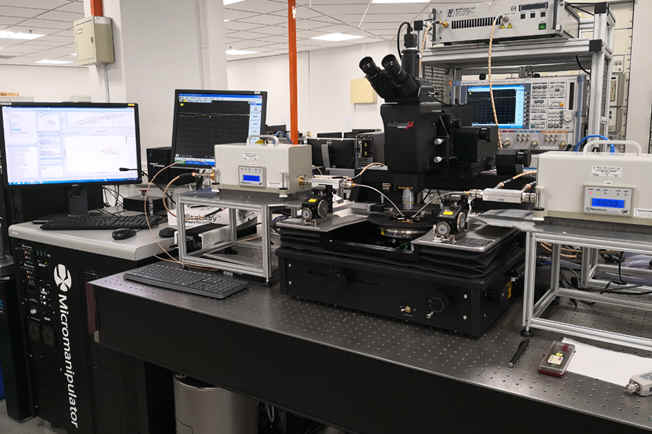

(3) Micromanipulator 4060 Manual: 8-inch Probe Station Platform with Computer controlled Thermal Chuck (-65^oC to 400^oC)

B. AMCAD Pulse IV System

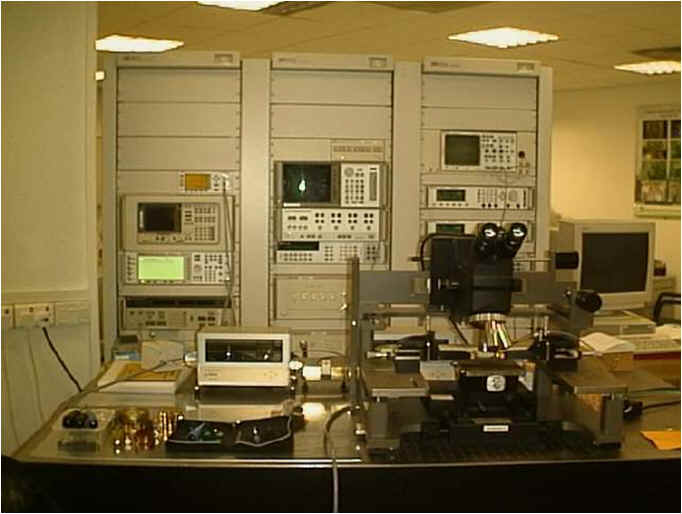

C. Agilent (HP) 85124 Pulse On-Wafer Measurement System

(45 MHz - 50 GHz) and Cascade Probe Station Model 9000

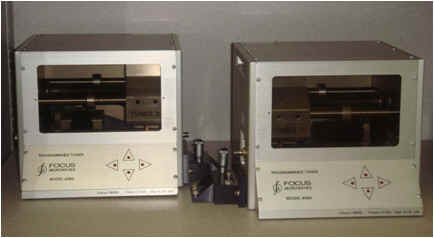

D. Focus Programmable Tuner Model 1808 (0.8 GHz - 18 GHz)

and 4006 (6 GHz - 40 GHz)

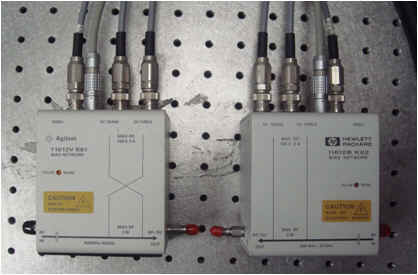

E. HP 11612 Bias Network (400 MHz - 50 GHz)

3. Signal Generator and Spectrum Analyzer

A. Agilent 8257D Signal Generator (250 kHz - 40 GHz)

& Agilent 83650B ( 10 MHz - 50 GHz)

B. Agilent 8565EC Spectrum Analyzer (30 MHz - 50 GHz)

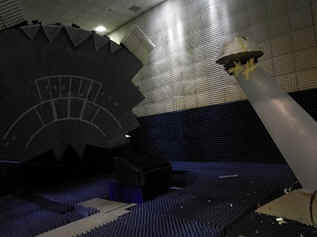

4. Antenna Anechoic Chamber and Orbit Measurement System

A.Far-field measurement up to 20 GHz

B. Compact Range Antenna radiation pattern measurement (2 GHz to 37.5 GHz)

C. Probe-station based measurement system up to 110 GHz.

5. Wirebonding and PCB plotter

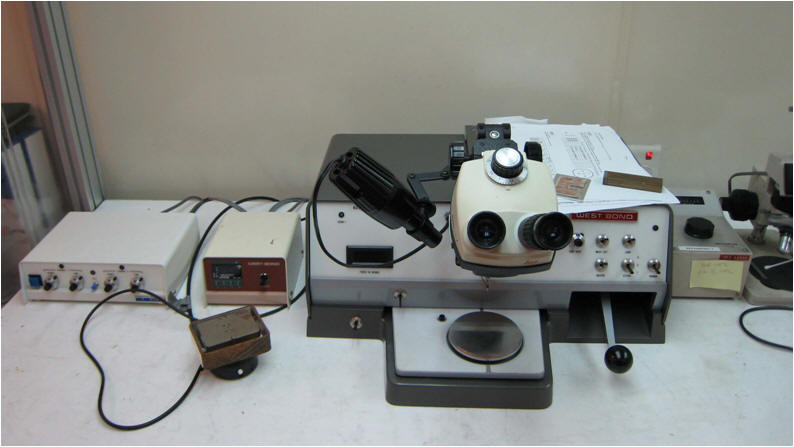

A. Manual DIE/WIRE Bonder (WEST® BONDER)

B. Circuit Board Plotter for In-House PCB Prototyping

        (LPKF® ProtoMat S100)

6. RF and EM Software packages and Computer Resources

A. RF System and Circuit Modelling and Simulation Tools

Agilent ADS

Microwave Office

Cadence

IC-CAP

etc.

B. EM Modelling and Simulation Tools

Ansoft HFSS (3D)

CST (3D)

XFDTD

Ansoft Designer (2D)

Sonnet (2D)

IE3D (2D)

etc.

C. Computer Workstation Servers
